Brand Name : ZSX
Model Number : 2PM18-4K
Certification : ISO9001
Place of Origin : China
MOQ : 50
Price : Depending on the quantity
Payment Terms : T/T,D/P,Western Union
Supply Ability : 150000Pcs/Year
Delivery Time : 5-8 Days
Packaging Details : Carton packaging
Name : Russian Connector
Gender : Female
Boday Material : Metal
Working temperature : -60℃~+200℃
Russian Standard Circular Connector 2PM24J19Z2 adopts Russian connector technology and is widely used for electrical connections and signal transmission between aeronautics and astronautics equipment. Its unique shape and structural design address deficiencies found in similar connectors, featuring convenient shell threaded holes and tail screw design. The internal bakelite and fiberglass insulators with reinforced pin holes provide exceptional stability and reliability. This series also offers waterproof and high-temperature resistance capabilities, with special structure and performance widely recognized in the market.
| Product Model | 2PM24J19Z2 | Insulation Resistance | ≥1000MΩ (normal), ≥20MΩ (damp heat) |
| Ambient Temperature | -60℃~+200℃ (bakelite) | Shock Acceleration | Once at 500g, multiple times at 100g |
| Vibration Acceleration | 10~5000Hz 50g | Working Voltage | ≤560V |




















|
|

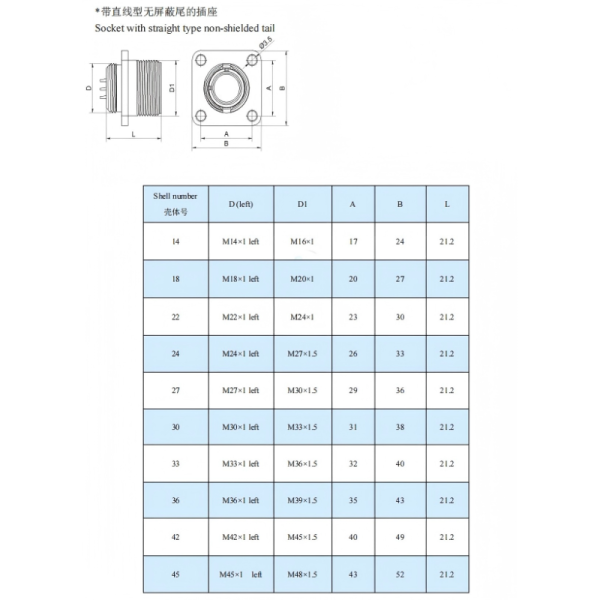

Female Russian Connector with Metal Body and High Temperature Resistance for Aeronautics and Astronautics Images |
